MIXING
MILL
Mixing
Mill with chilled cast iron rolls with motorised or hand
operated nip adjustment.
Sizes are 6"x16", 8"x18",
10"x24", 12"x30", 14"x36",
16"x42", 18"x48" etc. |
|
|
 |
|
|
MIXING
MILL |
MIXING
MILL |
|
|
|
|
OUTLINE
SPECIFICATIONS OF MIXING MILLS |
|
Size
Of Rolls
DIA. x Length |
Capacity
KGS.
Batch (APP.) |
R.P.M
of
Rolls (App.) |
Friction
Ratio |
Electric
Motor H.P |
| 6"
x 16" |
3/6 |
29 |
1
: 1 . 15 |
7.5 |
| 8"
x 18" |
7/10 |
23 |
1
: 1 . 15 |
10 |
| 10"
x 24" |
15/20 |
21 |
1
: 1 . 18 |
20 |
| 12"
x 30" |
20/30 |
21 |
1
: 1 . 18 |
30 |
| 14"
x 36" |
30/45 |
19 |
1
: 1 . 18 |
40 |
| 16"
x 42" |
50/60 |
17 |
1
: 1 . 18 |
60 |
| 18"
x 48" |
75/90 |
15 |
1
: 1 . 18 |
75 |
| Friction
ratio and R.P.M. can be changed as per customer's
requirement. |
| |
|
..
|
|
The machines with two to five
rolls can be supplied as per customer's requirement.
Sizes are 6"x18", 8"x24",
10"x30", 12"x36", 14"x42",
16"x48" etc. |
|
|
|
|
|
|
OUTLINE
SPECIFICATIONS OF CALENDERS |
|
Size
Of Roll
DIA. x Length |
Line
Speed. Per Minute (APP.) in MTRS. |
Max.
Width of Product |
Electric
Motor H.P |
| 6"
x 18" |
7 |
14" |
7.5 |
| 8"
x 24" |
7 |
20" |
10 |
| 10"
x 30" |
7 |
26" |
15 |
| 12"
x 36" |
9 |
30" |
25 |
| 14"
x 42" |
9 |
36" |
40 |
| 16"
x 48" |
9 |
42" |
50 |
| Line
speed of the Calenders can be changed as per
customer's requirement. |
|
|
|
|
CALENDER |
|
.
|
|
The machines can be supplied
both in cast iron and steel fabricated bodies and with
carbon steel worm & sleeve set or with Nitrided worm
& sleeve set as per customer's requirements.
Sizes are 2",3",4",6",8" etc. |
|
|
|
OUTLINE
SPECIFICATIONS OF EXTRUDERS |
|
| Worm
Dia |
L/D
Ratio |
Worm
Speed R.P.M. |
Capacity
KG./H.R.APP. |
Electric
Motor KW. |
| 1" |
1
: 5 |
52 |
5 |
2 |
| 2" |
1
: 5 |
52 |
20 |
5 |
| 3" |
1
: 5 |
47 |
30 |
7.5 |
| 4" |
1
: 5 |
45 |
140 |
15 |
| 4.5" |
1
: 5 |
45 |
170 |
20 |
| 6" |
1
: 5 |
35 |
250 |
25 |
| 8" |
1
: 5 |
25 |
300 |
40 |
|
|
|
|
|
|

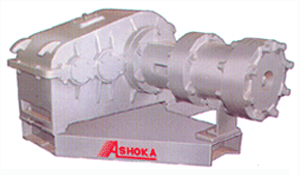

EXTRUDER |
|
|
|
|
|
